GPSM-GM85-02

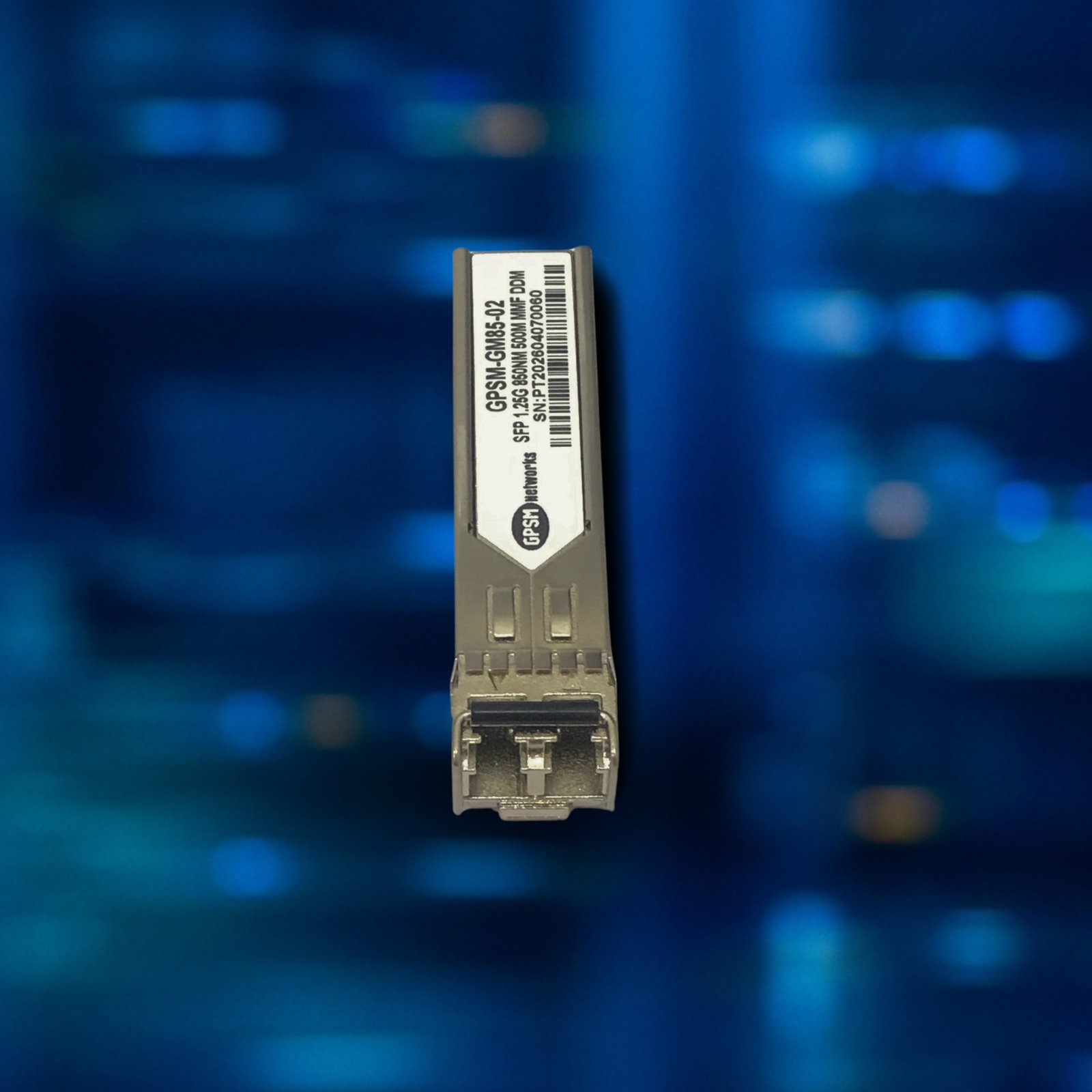

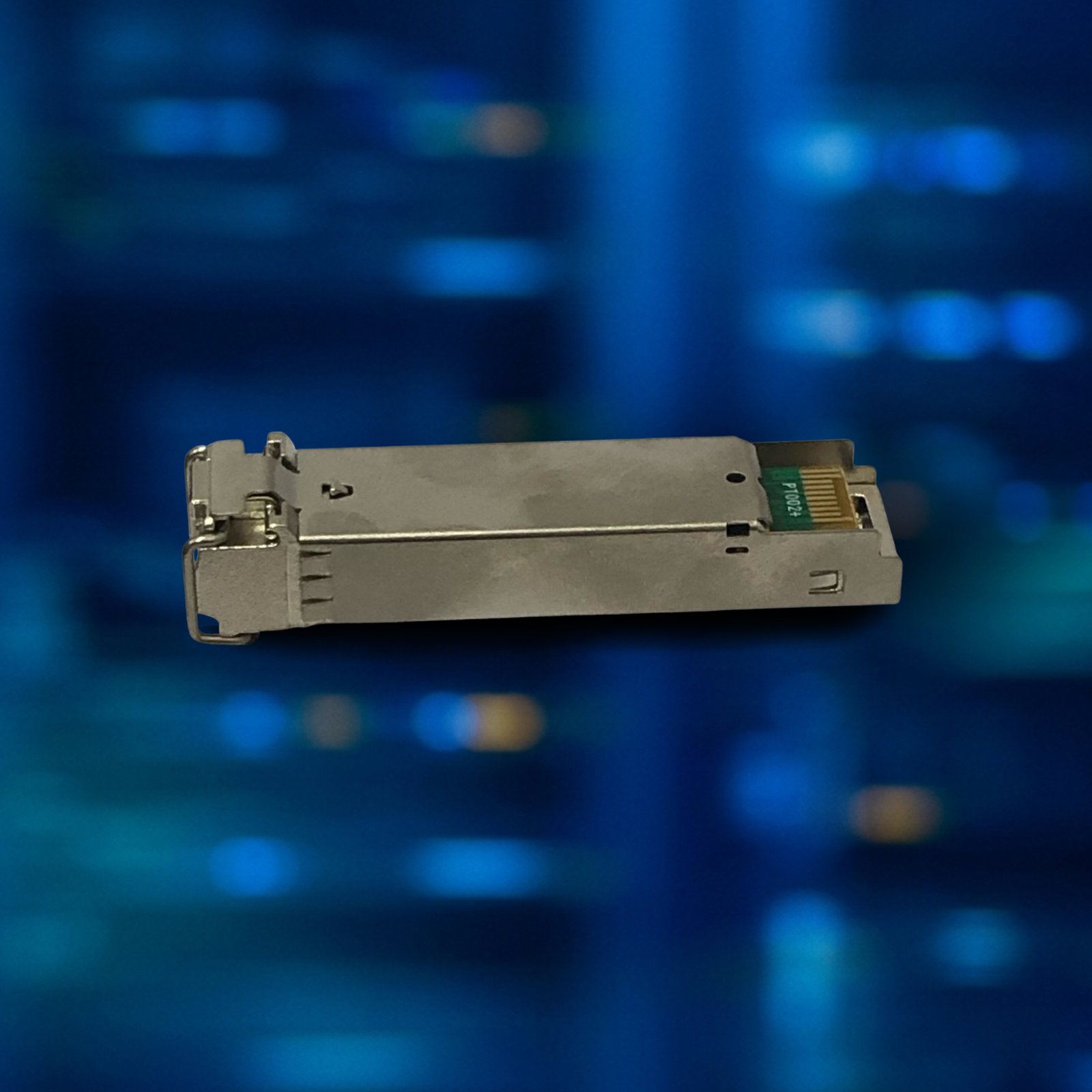

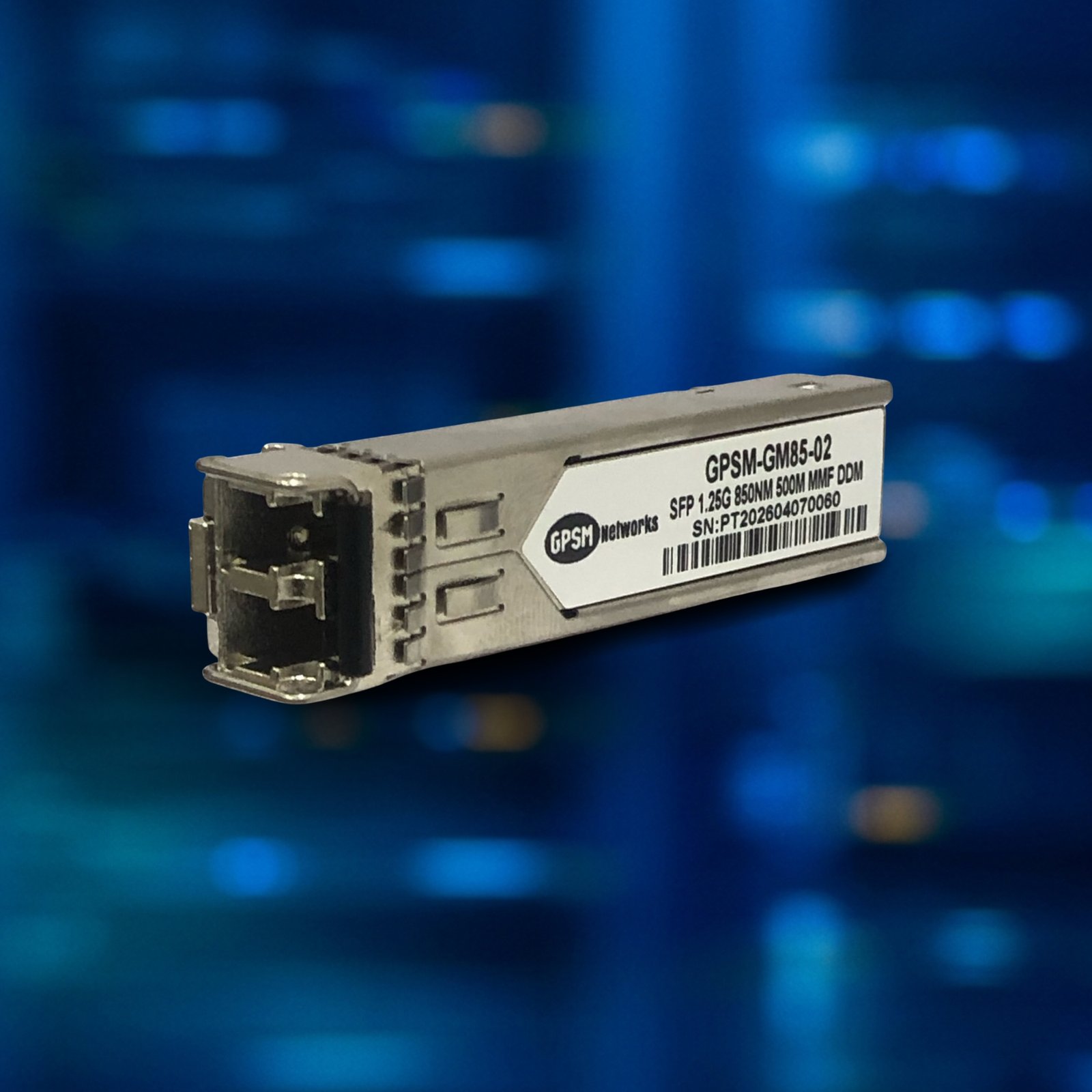

The SFP transceiver is a compact and high-performance optical module engineered for Gigabit Ethernet and fiber communication applications. It supports data transmission speeds of up to 1.25Gbps and enables reliable connectivity over distances of up to 550 meters using Multimode Fiber (MMF). Featuring an 850nm VCSEL laser transmitter and a PIN photodetector receiver, the module delivers stable signal performance while maintaining cost efficiency. Its compliance with industry standards ensures seamless interoperability across a wide range of networking equipment.

Key Features

• • Supports data rates of up to 1.25Gbps
  • Utilizes an 850nm VCSEL laser transmitter and PIN photodetector receiver
  • Provides transmission distances of up to 550 meters over 50/125µm MMF
  • Compliant with SFP MSA and SFF-8472 standards
  • Equipped with a duplex LC optical interface
  • Supports Digital Diagnostic Monitoring (DDM) for real-time performance monitoring
  • Available with internal or external calibration
  • Low power consumption and dependable operation
  • Ideal for enterprise networks, data centers, and Gigabit Ethernet applications
