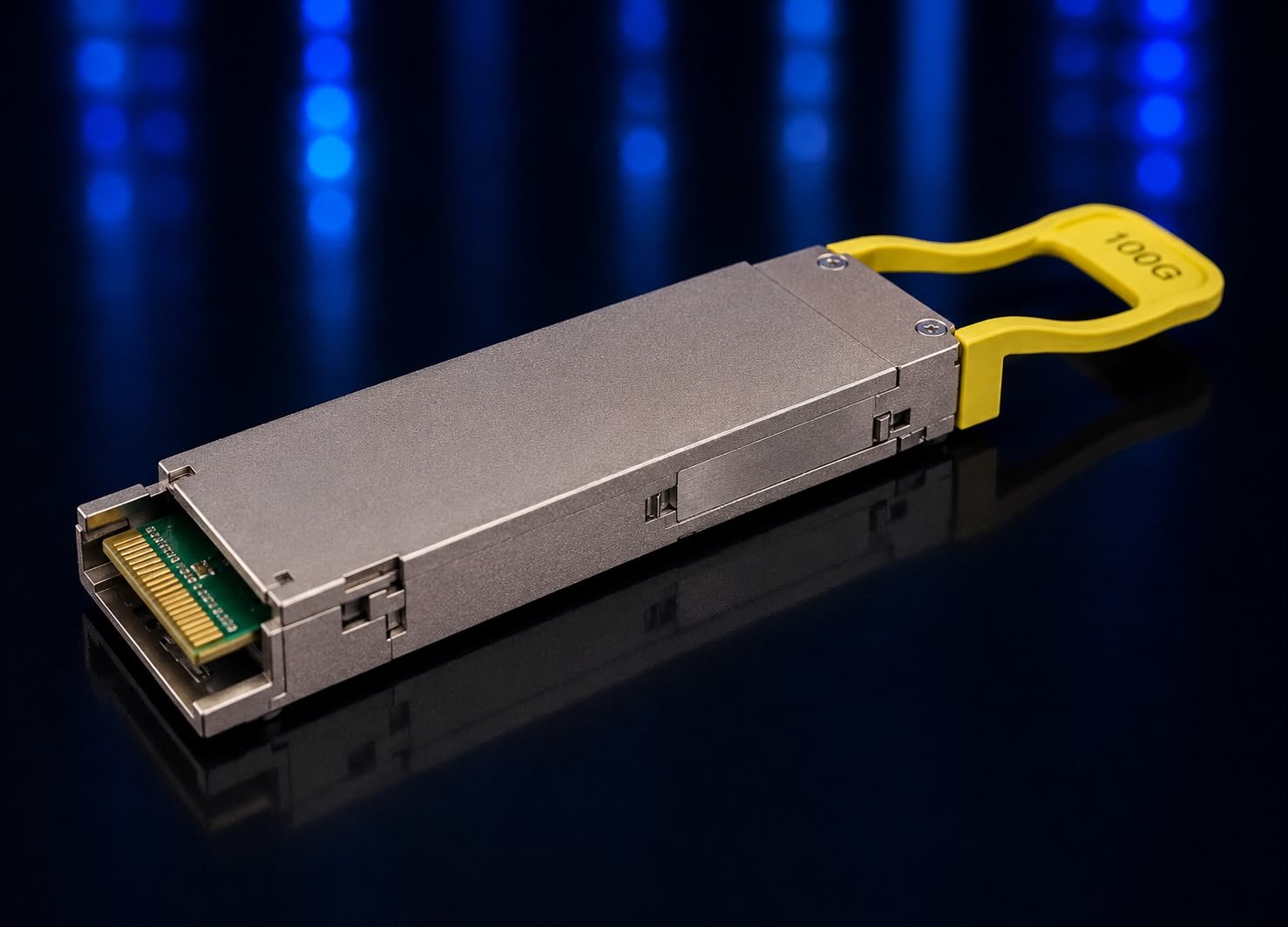

GPSM-100G13-20LR

Overview

The 100G QSFP28 LR4 Optical Transceiver is a high-performance module designed for 100 Gigabit Ethernet applications and is fully compliant with the IEEE 802.3ba 100GBASE-LR4 standard. The module converts four independent 25Gbps electrical input channels into four LAN-WDM optical signals, which are multiplexed into a single optical channel for 100Gbps transmission. Featuring advanced DFB-based LAN-WDM transmitters and a 4-channel PIN ROSA receiver, the transceiver delivers reliable, high-speed connectivity over distances of up to 20km on G.652 Single Mode Fiber (SMF).

Key Features

• Compliant with IEEE 802.3ba 100GBASE-LR4 standards
• Supports 4-channel full-duplex communication with data rates of up to 26Gbps per channel
• Utilizes 4 × 26Gbps DFB-based LAN-WDM transmitters and 4-channel PIN ROSA receiver
• Provides transmission distances of up to 20km over G.652 Single Mode Fiber (SMF)
• Features a hot-pluggable QSFP28 form factor with duplex LC connectors
• Supports Digital Diagnostic Monitoring (DDM/DOM) for real-time module status monitoring

Need this product?

Share your switch brand, distance, speed and quantity requirements with GPSM. Our team will help confirm compatibility and quotation details.

Request quotation
